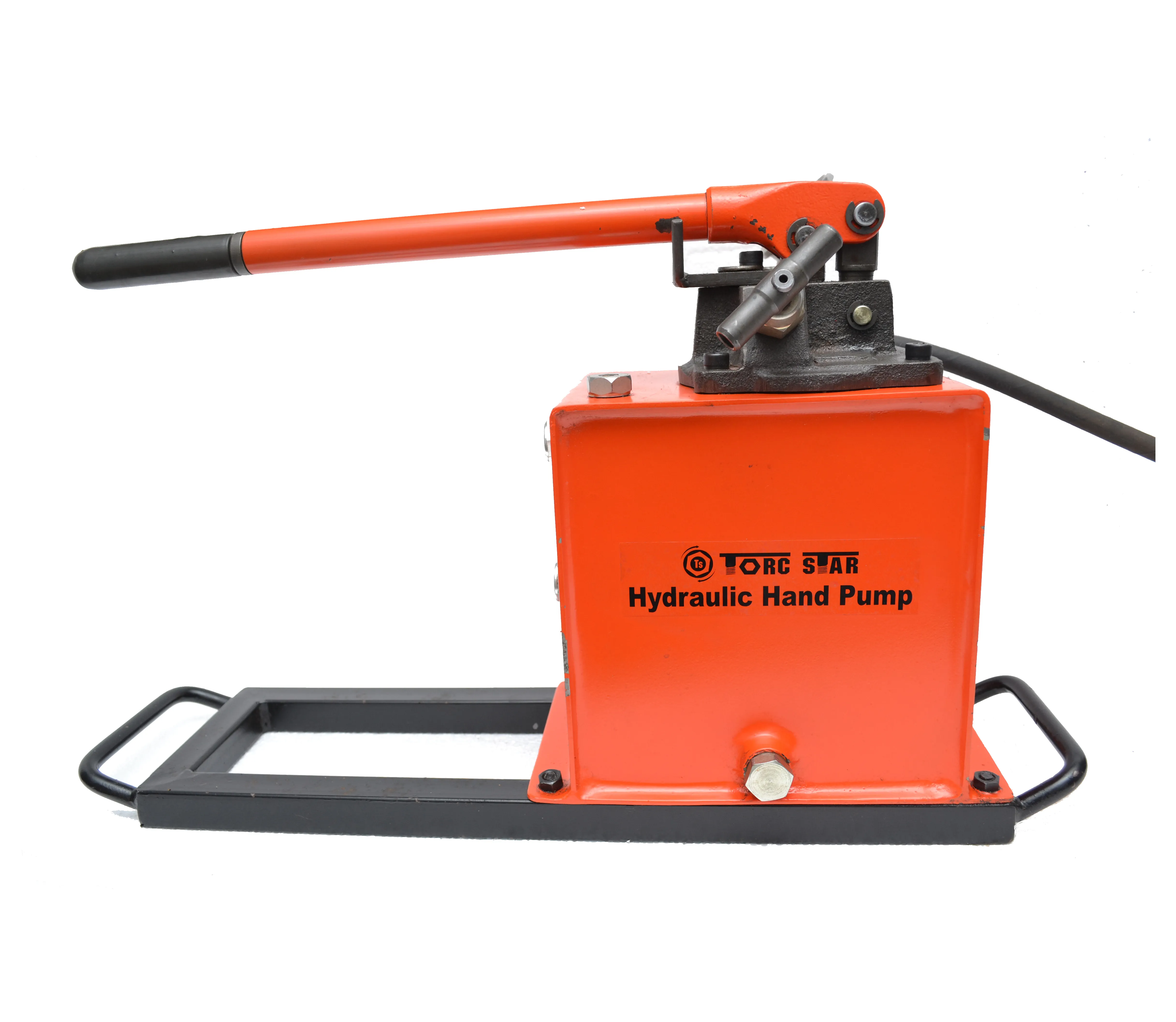

Two Stage Hand Pump with DCV
Two-Stage Hand Pump with Directional Control Valve (DCV) is a compact high-performance manual hydraulic power unit designed for operating both single-acting and double-acting cylinders. Its two stage pumping mechanism delivers rapid low-pressure oil flow for fast cylinder advancement, automatically shifting to high-pressure output for precise lifting, pressing, and load engagement. This reduces operator effort, improves speed, and enhances overall productivity compared to traditional single-stage pumps.
Technical Specifications:
Oil Tank Capacity : 5 - 20 Ltrs.
Pressure : 700 bar
Key Features:
Provides rapid low-pressure oil flow for fast cylinder approach, transitioning automatically to high-pressure output for precise load application and reduced operator effort.
Enables smooth and controlled extension, holding, and retraction of cylinders, improving operational safety and precision in all hydraulic tasks.
Delivers the force required for heavy lifting, jacking, and pressing applications, making it suitable for a wide range of hydraulic tools and cylinders.
Available in 5, 8, 13, and 20-litre capacities, providing the flexibility to select the right pump for small to large hydraulic tasks.
Engineered for smooth pumping action with a fixed handle effort of 49 kg across all models, ensuring ease of use and reduced fatigue.
Versatile pump design that supports a wide range of hydraulic cylinders, jacks, and tools used in industrial applications.
Product Specifications:
- Technical Data
| Model No. | STAGE | OIL TANK CAPACITY | PRESSURE | FLOW 1ST STAGE | FLOW 2ND STAGE |
| TMP-2 | Single | 1.4 Ltrs. | 700 bar | - | 2.8 |
| TMP-3 | Single | 2.2 Ltrs. | 700 bar | - | 2.8 |
| TMP-5 | 2 Stage | 5 Ltrs. | 700 bar | 49 | 2.8 |
| TMP-8 | 2 Stage | 8 Ltrs. | 700 bar | 49 | 2.8 |
| TMP-13 | 2 Stage | 13 Ltrs. | 700 bar | 49 | 2.8 |
| TMP-20 | 2 Stage | 20 Ltrs. | 700 bar | 49 | 2.8 |
