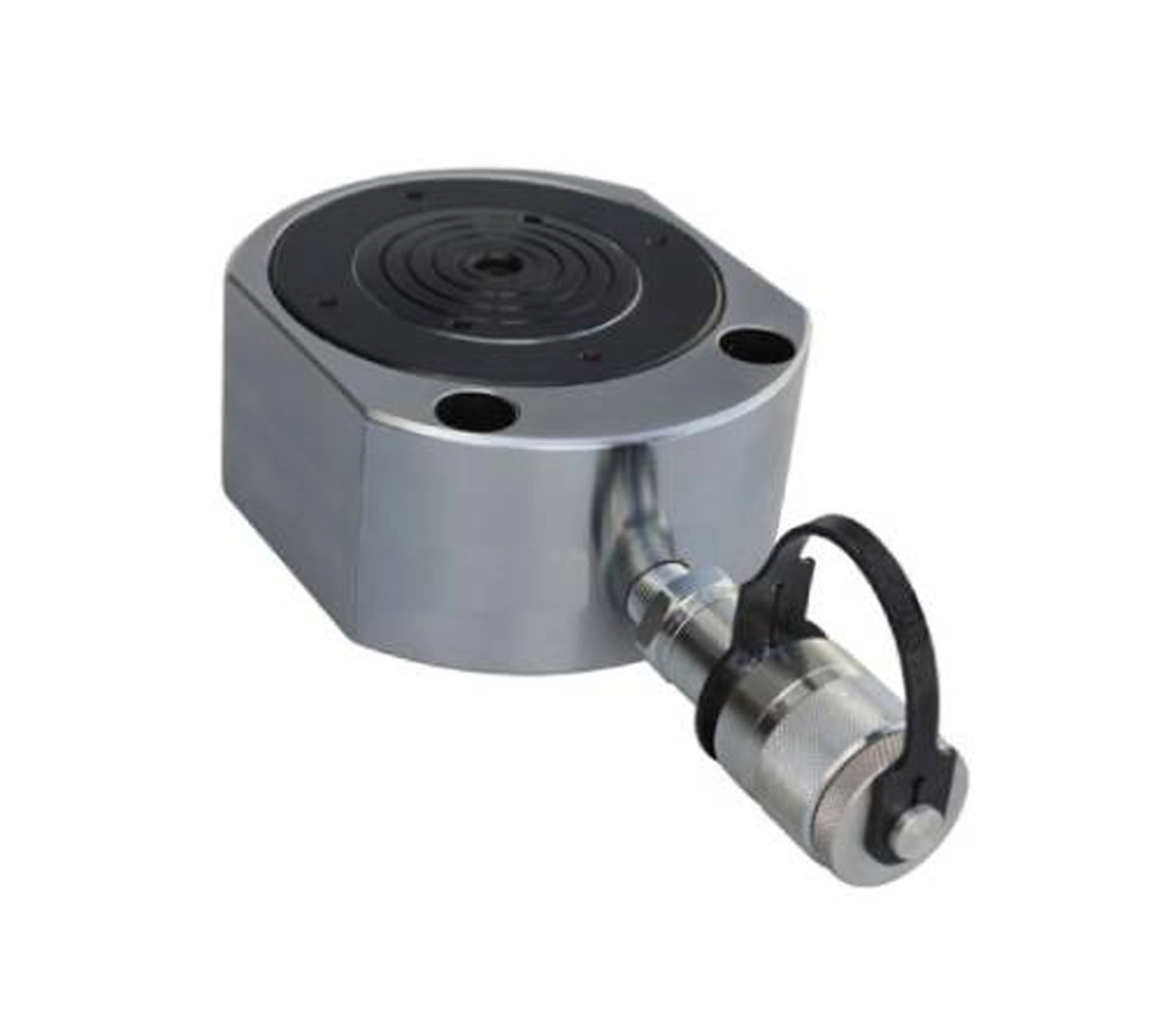

Compact Profile Cylinders
Compact Profile Hydraulic Cylinders are engineered to deliver high force in a low-profile design, making them ideal for use in confined spaces and tight work areas. Designed with a single-acting, spring return mechanism, these cylinders provide reliable, efficient operation for lifting, pressing, and industrial maintenance applications. Their robust construction ensures durability, long-term performance, and safe operation under demanding industrial conditions.
Technical Specifications:
Cylinder Capacity : 10-200 ton.
Stroke : 30-60 mm.
Closed Height : 90-200 mm.
Material : Steel.
Applications:
- Confined space lifting and pressing suitable for operating in tight or low-clearance areas
- Industrial maintenance and repair for servicing machinery and equipment safely and efficiently
- Hydraulic bolting and flange operations supporting precise bolt tensioning and flange alignment tasks
- Construction and infrastructure projects for lifting or positioning heavy components on-site
- Machine and equipment installation helping accurately place and align machinery during assembly
- General industrial force applications applicable for pressing, bending, or lifting in various industrial tasks
Key Features:
The cylinder uses hydraulic pressure to extend and relies on an internal spring to retract, ensuring fast and efficient cycles with minimal operator effort.
Built with a low collapsed height to operate effectively in tight or confined spaces, ideal for maintenance or lifting tasks in restricted areas.
Models range from 10 ton up to 200 ton, giving flexibility to match application requirements.
Single-port design reduces complexity, minimizes maintenance, and simplifies hydraulic connections.
Fewer components and simpler design translate into lower operational costs and easier upkeep.
Spring-return ensures the piston retracts safely when pressure is released, providing dependable operation in industrial applications.
Product Specifications:
- Technical Data
Single Acting, Spring Return
| Model No. |
Cylinder Capacity (Ton) |
Stroke (mm) |
Closed Height (mm) |
Weight (Approx) (Kg) |
| TCC-101 | 10 | 30 | 90 | 2.5 |
| TCC-201 | 20 | 50 | 115 | 5 |
| TCC-302 | 30 | 50 | 120 | 6 |
| TCC-502 | 50 | 60 | 125 | 11 |
| TCC-752 | 75 | 60 | 145 | 20 |
| TCC-1002 | 100 | 60 | 150 | 24 |
| TCC-1502 | 150 | 60 | 175 | 43 |
| TCC-2002 | 200 | 60 | 200 | 66 |
| ● Low profile designed for use in confined area. | ||||
