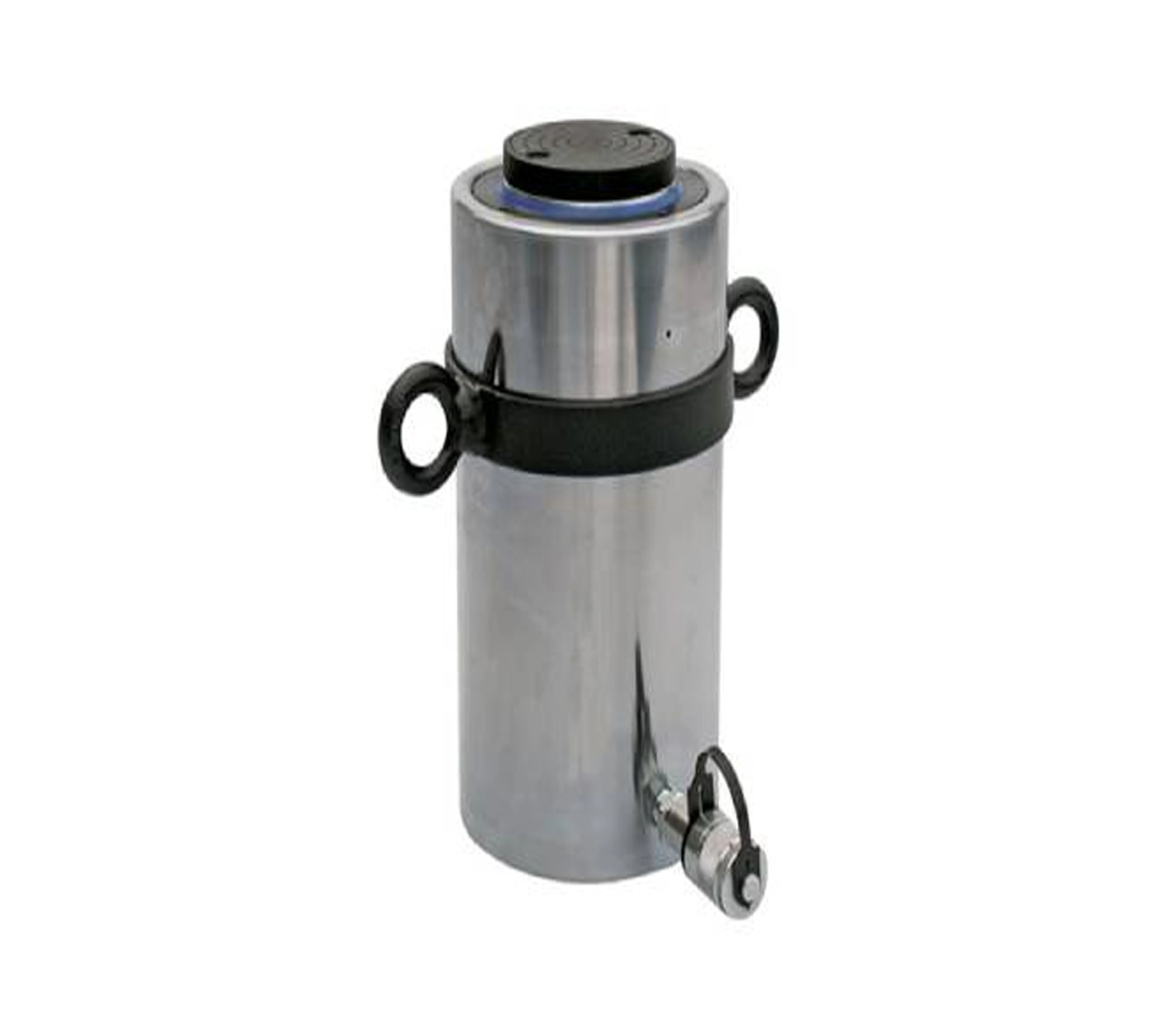

General Purpose Cylinders (TCG Series)
General Purpose Single-Acting, Spring-Return Hydraulic Cylinders are designed for reliable lifting, pushing, pulling, and holding applications across a wide range of industrial environments. Engineered with a robust steel body, precision-machined components, and integrated handles or lifting eyes, these cylinders deliver consistent performance under demanding loads.
The single-acting design ensures force is applied in one direction, while the heavy-duty internal spring provides fast and automatic return, improving operational speed and safety.
Technical Specifications:
Cylinder Capacity : 5-500 ton.
Stroke : 50-200 mm.
Closed Height : 140-450 mm.
Material : Steel
Applications:
- Heavy machinery lifting and Lowering
- Construction site load handling and structural support
- Bridge, building and foundation lifting operations
- Industrial assembly and production line tasks
- Load testing and stress testing applications
- Heavy vehicle maintenance and axle lifting
- Pipe, refinery and plant maintenance jobs
Key Features:
Automatic spring retraction enables quick reset after each operation, improving workflow efficiency.
Available in multiple tonnage ranges to handle light maintenance tasks up to heavy industrial lifting.
Precision-machined steel body with corrosion-resistant finish ensures long service life in harsh environments.
Suitable for lifting, pushing, pulling, and holding applications across various industries.
Heavy-duty internal spring provides consistent retraction force for reliable performance.
Designed for standard 700 bar hydraulic systems for maximum operational flexibility.
Integrated lifting eyes or handles for safe positioning and easy transport.
One hydraulic port allows easy setup and quick connection during field operations.
Product Specifications:
- Technical Data
| Model No. | Cylinder Capacity (ton) | Stroke (mm) | Closed Height (mm) | Weight (Approx) (kg) |
|---|---|---|---|---|
| TCG 52 | 5 | 50 | 140 | 1.5 |
| TCG 54 | 5 | 100 | 190 | 2 |
| TCG 56 | 5 | 150 | 240 | 2.7 |
| TCG 102 | 10 | 50 | 140 | 2.5 |
| TCG 104 | 10 | 100 | 190 | 4 |
| TCG 106 | 10 | 150 | 240 | 5 |
| TCG 108 | 10 | 200 | 290 | 6 |
| TCG 152 | 15 | 50 | 150 | 4 |
| TCG 154 | 15 | 100 | 200 | 6 |
| TCG 156 | 15 | 150 | 250 | 7 |
| TCG 158 | 15 | 200 | 300 | 8 |
| TCG 202 | 20 | 50 | 155 | 5.5 |
| TCG 204 | 20 | 100 | 205 | 6.5 |
| TCG 206 | 20 | 150 | 255 | 7.5 |
| TCG 208 | 20 | 200 | 305 | 9.5 |
| TCG 252 | 25 | 50 | 170 | 8 |
| TCG 254 | 25 | 100 | 220 | 10 |
| TCG 256 | 25 | 150 | 270 | 12 |
| TCG 258 | 25 | 200 | 320 | 14 |
| TCG 302 | 30 | 50 | 180 | 11 |
| TCG 304 | 30 | 100 | 230 | 13 |
| TCG 306 | 30 | 150 | 280 | 16 |
| TCG 308 | 30 | 200 | 330 | 18 |
| TCG 502 | 50 | 50 | 190 | 19 |
| TCG 504 | 50 | 100 | 240 | 23 |
| TCG 506 | 50 | 150 | 290 | 27 |
| TCG 508 | 50 | 200 | 340 | 32 |
| TCG 752 | 75 | 50 | 195 | 28 |
| TCG 754 | 75 | 100 | 245 | 34 |
| TCG 756 | 75 | 150 | 295 | 40 |
| TCG 758 | 75 | 200 | 345 | 45 |
| TCG 1002 | 100 | 50 | 215 | 39 |
| TCG 1004 | 100 | 100 | 265 | 46 |
| TCG 1006 | 100 | 150 | 315 | 54 |
| TCG 1008 | 100 | 200 | 365 | 61 |
| TCG 1502 | 150 | 50 | 225 | 66 |
| TCG 1504 | 150 | 100 | 275 | 78 |
| TCG 1506 | 150 | 150 | 325 | 90 |
| TCG 2002 | 200 | 50 | 240 | 94 |
| TCG 2004 | 200 | 100 | 290 | 110 |
| TCG 2006 | 200 | 150 | 340 | 126 |
