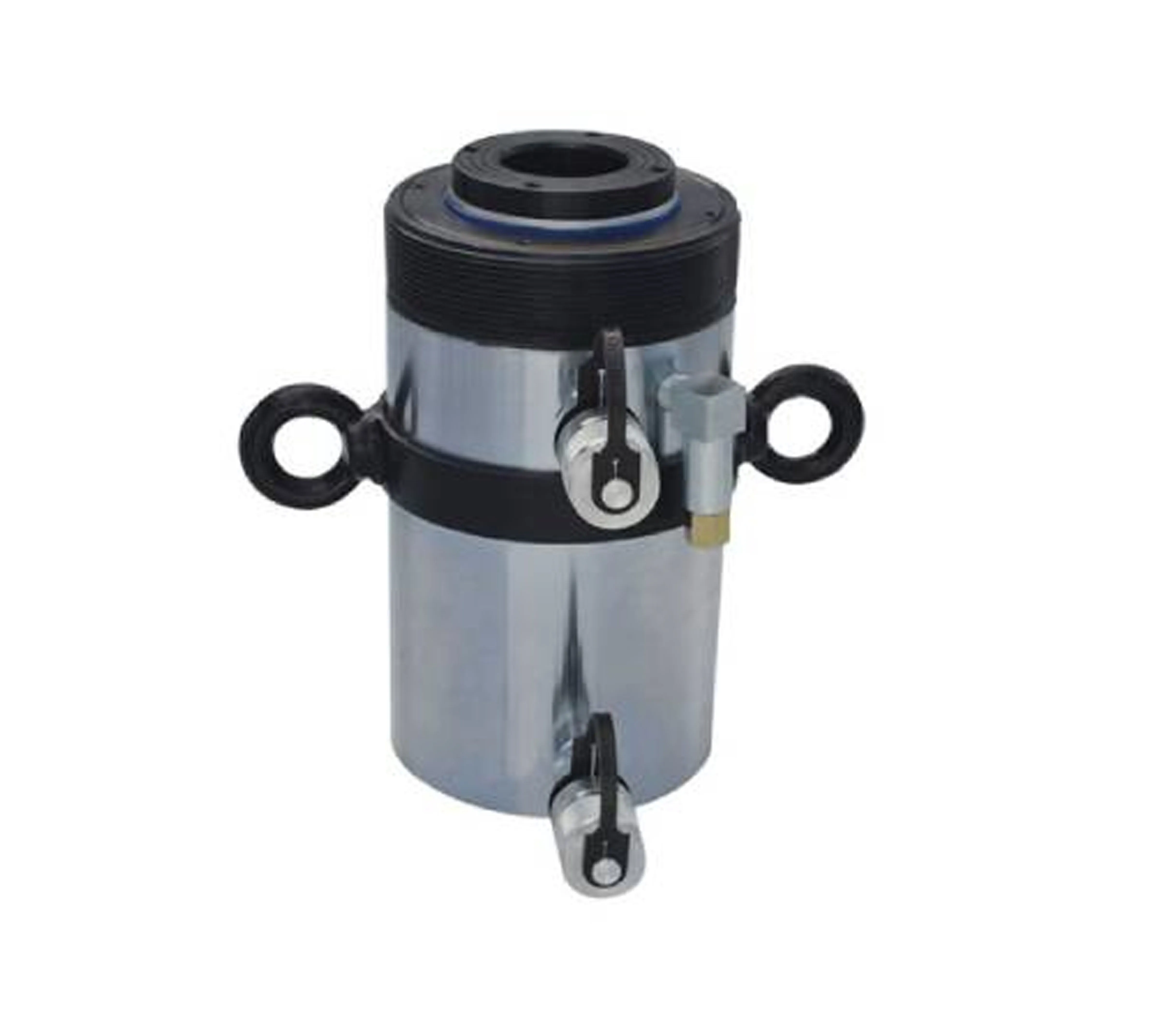

Heavy Lift Double Acting Hydraulic Return Cylinders

Heavy-Lift Double-Acting Hydraulic Return Cylinders are built for robust industrial lifting, jacking, and heavy-load applications where powerful, controllable bidirectional hydraulic motion is required.Unlike single-acting cylinders, these double-acting models deliver force during both extension and retraction strokes — enabling precise control for lifting, lowering, pressing, or positioning heavy loads.

With heavy-duty construction, hardened components, and hydraulic return capability, these cylinders are well-suited for repeated, demanding use in industrial, construction, maintenance, and infrastructure settings. Their design allows stable lifting and controlled descent — ideal for structural jacking, heavy equipment positioning, or tasks requiring controlled lowering under load.

Technical Specifications:

Cylinder Capacity : 10-1600 ton.

Stroke : 50-300 mm.

Closed Height : 177-785 mm.

Material : Steel.

Applications:

Heavy equipment jacking and positioning in industrial plants.
Structural lifting, alignment and installation during construction or refurbishment.
Foundation levelling and adjustment for civil engineering and infrastructure projects.
Machinery maintenance and relocation requiring controlled lift and descent.
Bridge support, structural component jacking or shimming in repair/assembly operations.
Shutdown, turnaround, or overhaul jobs needing safe lifting and lowering under load.
Heavy-load pressing, pushing, or alignment tasks in fabrication and heavy-machinery workshops.
Situations requiring repeatable, controlled lifting and lowering cycles under high loads.

Key Features:

Provides hydraulic power on both the extension and retraction strokes, delivering controlled force for lifting and lowering heavy loads without relying on gravity or springs.

Designed to handle substantial loads, making them suitable for industrial jacking, structural lifting, equipment placement, or heavy-duty maintenance tasks.

Hydraulic return ensures smooth, controlled retraction and lowering — enhancing safety and precision during operations under load.

Flexible positioning capability allows the cylinder to work in both vertical lifting and horizontal pushing or pressing configurations as per job needs.

Able to accommodate larger strokes and substantial loads — useful for jacking, lifting, or moving heavy equipment, structural components, or machinery.

Can be integrated with standard hydraulic pumps, hoses, and couplers, making it easier to retrofit or deploy in existing hydraulic setups.

Built with robust materials and hardened pistons to withstand heavy stress and repeated load cycles for long service life.

Model No.	Cylinder Capacity (ton)	Stroke (mm)	Closed Height (mm)	Weight (Approx) (kg)
TCDL 102	10	50	190	5
TCDL 104	10	100	240	8
TCDL 106	10	150	290	10
TCDL 152	15	50	190	9
TCDL 154	15	100	240	11
TCDL 156	15	150	290	12
TCDL 202	20	50	195	11
TCDL 204	20	100	245	13
TCDL 206	20	150	295	15
TCDL 252	25	50	200	12
TCDL 254	25	100	250	14
TCDL 256	25	150	300	16
TCDL 302	30	50	205	12
TCDL 304	30	100	255	14
TCDL 306	30	150	305	17
TCDL 502	50	50	177	21
TCDL 504	50	100	227	25
TCDL 506	50	150	277	29
TCDL 1002	100	50	183	47
TCDL 1004	100	100	233	54
TCDL 1006	100	150	283	62
TCDL 1502	150	50	212	76
TCDL 1504	150	100	262	88
TCDL 1506	150	150	312	100
TCDL 2002	200	50	230	98
TCDL 2004	200	100	280	114
TCDL 2006	200	150	330	132
TCDL 2502	250	50	257	131
TCDL 2504	250	100	307	149
TCDL 2506	250	150	357	168
TCDL 3002	300	50	350	155
TCDL 3004	300	100	400	179
TCDL 3006	300	150	450	205
TCDL 4002	400	50	380	218
TCDL 4004	400	100	430	249
TCDL 4006	400	150	480	280
TCDL 5002	500	50	425	280
TCDL 5004	500	100	475	318
TCDL 5006	500	150	525	356
